Key Benefits
25 years experience in PCB design and manufacturing.
As an extension of your design team, we work closely with you throughout the project to insure the design meets your needs and application.
One stop for fast turn-around of design, fabrication and assembly.
Capabilities
SCHEMATIC CAPTURE
If you provide us a hand drawn schematic, we can enter or capture the schematic into our CAD software system.
Once the electronic schematic is generated, the design is easily updated and the net list and other information is available for generating the printed circuit board design.
LAYOUT
PCB designs include simple single sided, multi-layer, surface mount technology and through hole.
Featuring:
Hand routing of critical signals and circuits.
Design plots generated for your review throughout the design process to insure the project is on track and meeting your objectives.
PROTOTYPES

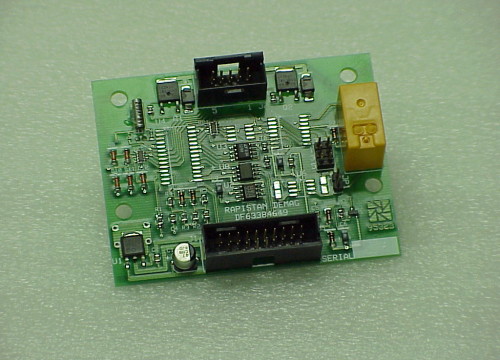

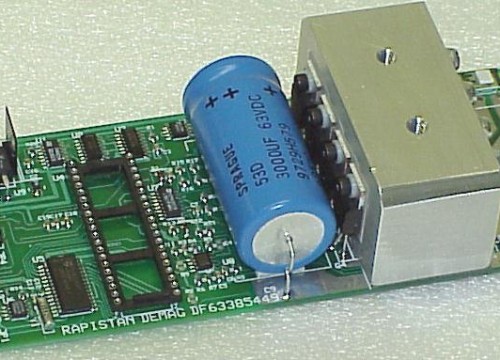

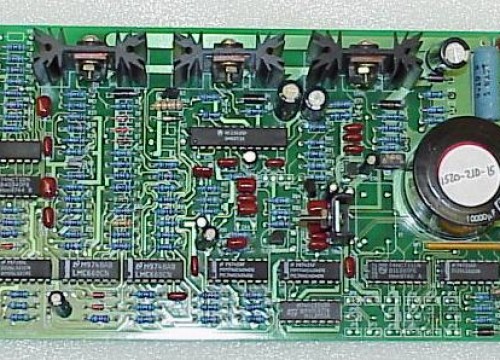

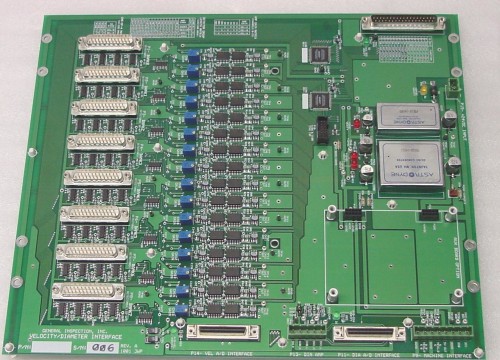

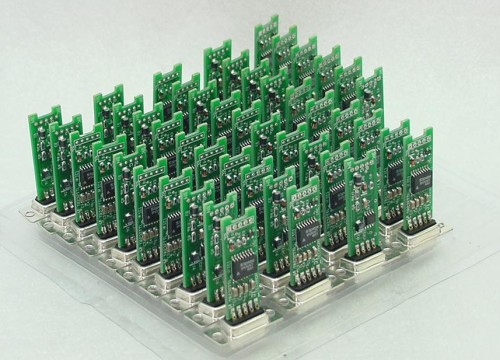

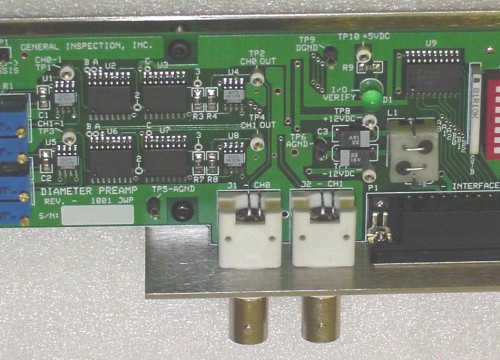

After the design is complete and you have approved the check plots, we will deliver bare or assembled prototype circuit boards.
